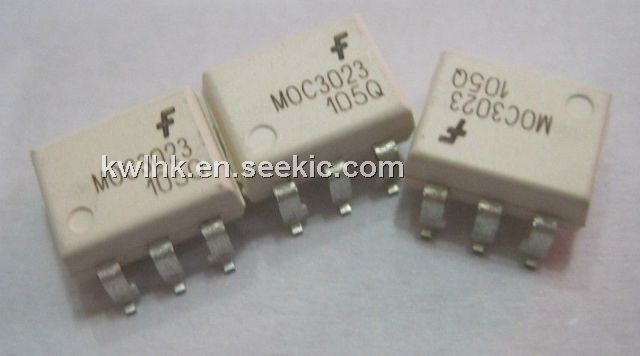

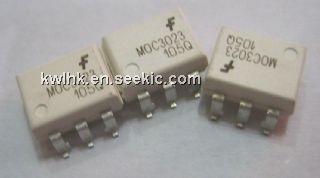

The MOC3023 is an optocoupler/optoisolator.
Parametrics
MOC3023 absolute maximum ratings: (1)Input-to-output peak voltage, 5 s maximum duration, 60 Hz (see Note 1): 7.5 kV; (2)Input diode reverse voltage: 3 V; (3)Input diode forward current, continuous: 50 mA; (4)Output repetitive peak off-state voltage: 400 V; (5)Output on-state current, total rms value (50-60 Hz, full sine wave): TA = 25°C: 100 mA; TA = 70°C: 50 mA; (6)Output driver nonrepetitive peak on-state current (tw = 10 ms, duty cycle = 10%, see Figure 7): 1.2 A; (7)Continuous power dissipation at (or below)25°C free-air temperature: Infrared-emitting diode (see Note 2): 100 mW; (8)Phototriac (see Note 3): 300 mW; (9)Total device (see Note 4): 330 mW; (10)Operating junction temperature range, TJ: –40°C to 100°C; (11)Storage temperature range, Tstg: –40°C to 150°C; (12)Lead temperature 1,6 (1/16 inch)from case for 10 seconds: 260°C.
Features
MOC3023 features: (1)250 V Phototriac Driver Output; (2)Gallium-Arsenide-Diode Infrared Source and Optically-Coupled Silicon Traic Driver (Bilateral Switch); (3)UL Recognized File Number E65085; (4)High Isolation 7500 V Peak; (5)Output Driver Designed for 220 V ac; (6)Standard 6-Terminal Plastic DIP; (7)Directly Interchangeable with Motorola MOC3020, MOC3021, MOC3022, and MOC3023.
Diagrams
